Air Bubble Stained Glass

[lynxster4]

This tutorial is available as a PDF. Click here to view or download it

@LionsDragon requested a tutorial on this after I posted an image in my gallery.

@TrevorOutlaw made a comment that it needed more scattered 'air bubbles' and I agreed.  So went my pursuit to see if I could accomplish it and make it better.

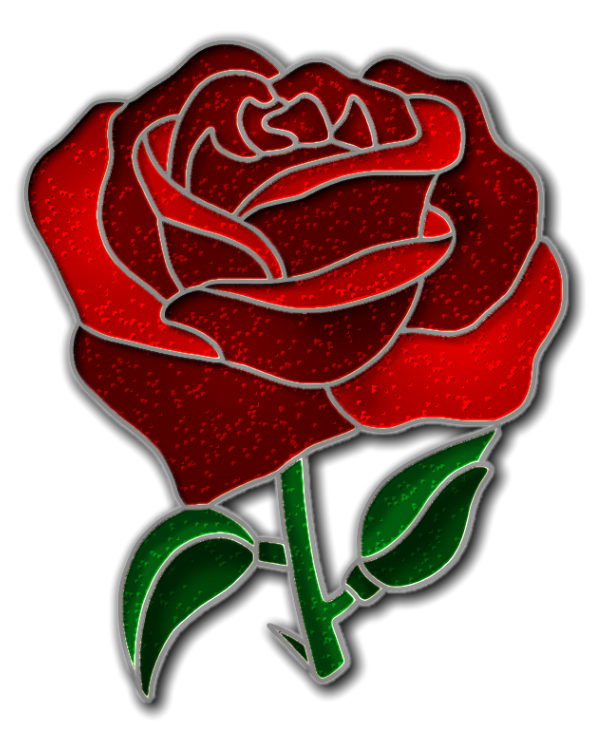

We will be making this:







Plugins  needed:

Dpy's AA's Assistant

Built-in Noise

Josh's Fuzzy Edge Detector

Red's Tone Angle Gradient

Pyrochild's Curves+

KrisVDM's Drop Shadow

BoltBait's Inner Shadow Selection





I'm using a shape that you can find in my shapepack, though any shape should work. I've tested it on a few. The shape is 'StainedGlass-Flower2'.  Here is the zip file. Shape-Curves.zip



Shape file (.xaml) goes into your shapes folder (ProgramFiles--->paint.net--->shapes).

The (.xml) goes into your Curves+ folder (Documents--->paint.net user files--->Effect Presets--->Curves+)

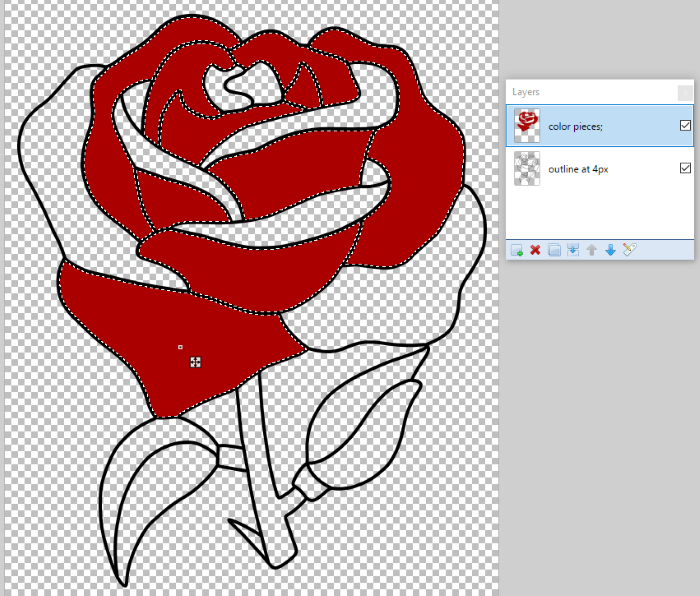

I'm using a canvas of 600 x 800.  Draw your shape, outline only, in black at 4px.  Add a new layer and color your shape pieces. Use magic wand at about 60% to select the pieces, go to new layer and fill with paint bucket any color of your choosing.  Continue until all pieces are colored.   ***USE SOLID COLORS ONLY!  GRADIENTS WILL NOT WORK!***

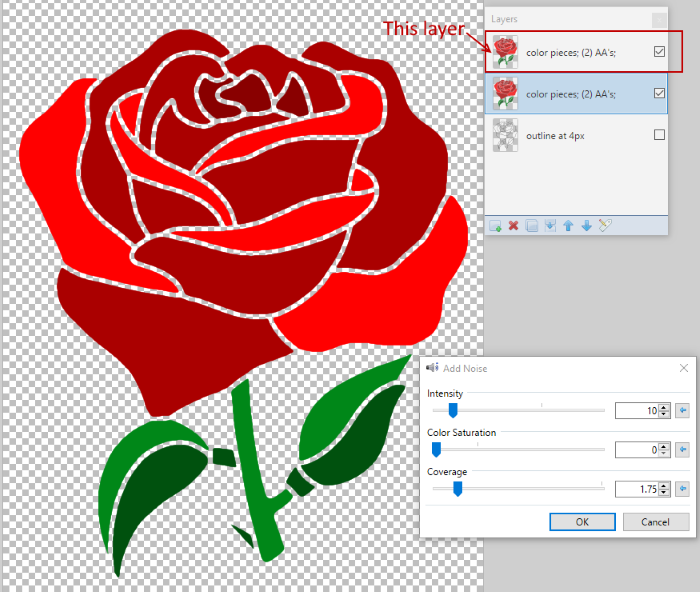

Do (2) AA's Assistant  (Effects--->Object).  Untick outline layer.  Duplicate your 'color pieces' layer.  On the top layer  Add Noise  (Effects--->Noise--->Add Noise)





It may look like you haven't done anything to the image, but you have.  This is the basis for the 'air bubbles'.

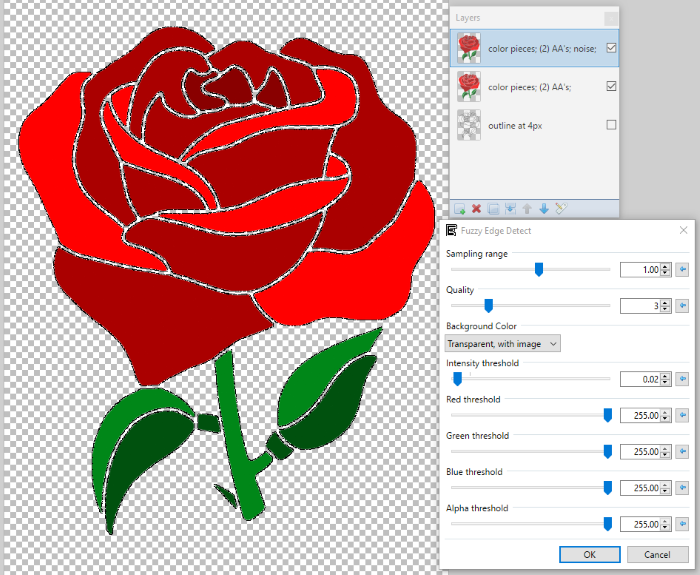

Still on the top layer, use Fuzzy Edge Detect at the settings below.  (Effects--->Stylize)

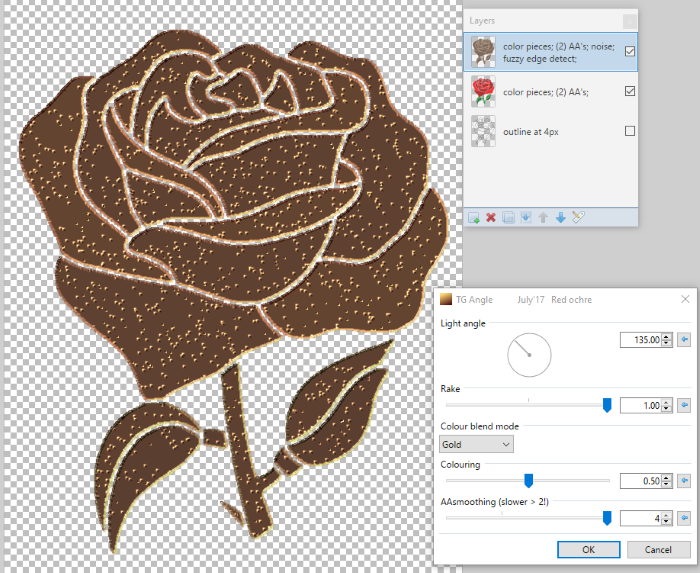

Still on the top layer, use Tone Gradient Angle at these settings.  (Effects--->Stylize)

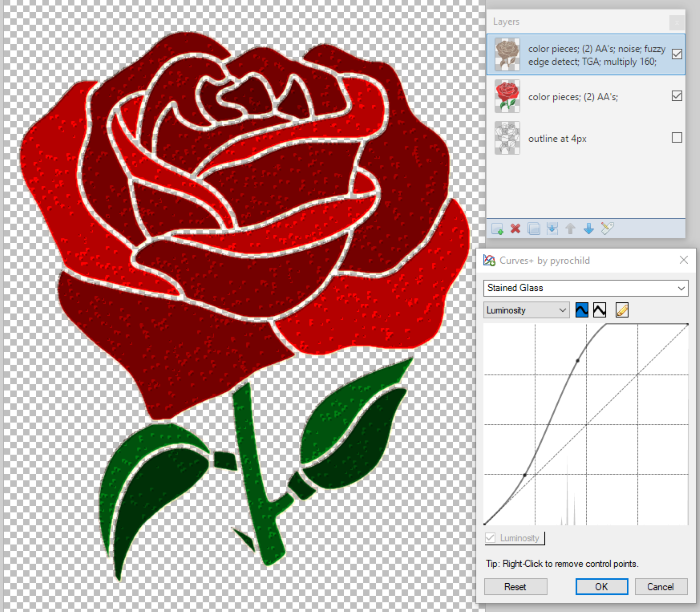

Set top layer to multiply, opacity about 160.  Then use Curves+ at these settings.  (Adjustments--->Curves+)





Merge top layer down onto layer 2, leaving outline layer untouched.

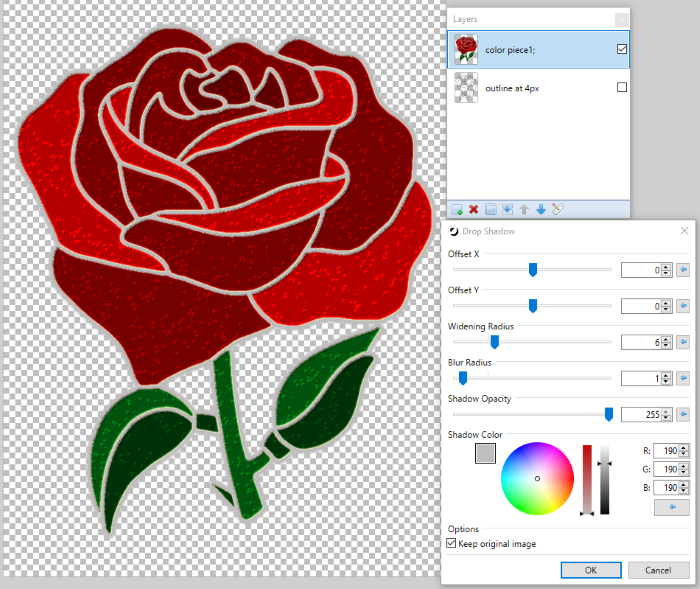

On 'color piece' layer do Drop Shadow at these settings.  (Effects--->Object)

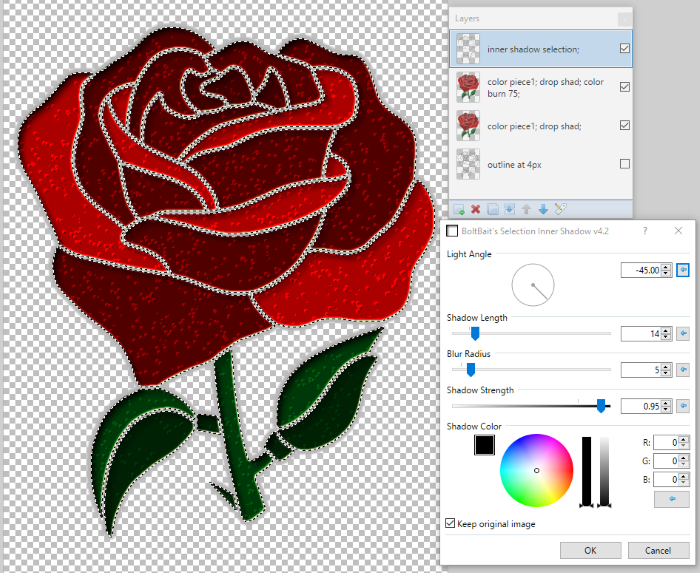

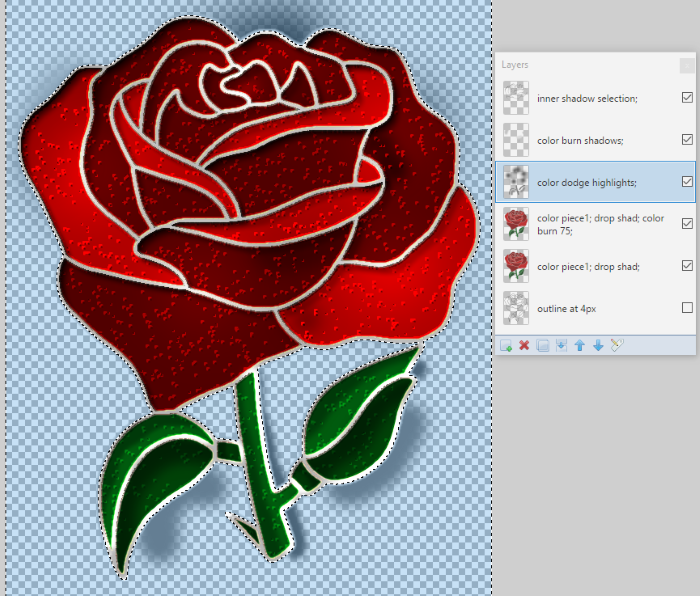

Duplicate the layer, set top layer to color burn, opacity about 75.  Create a new layer on top. On outline layer, select with magic wand all your 'pieces' (magic wand-shift), then select your new layer and use Inner Shadow Selection at these settings.  (Effects--->Selection)





Deselect.  At this point you may want to add layers for highlights and shading.  Set the (2) layers between 'inner shadow selection' layer and your colored image.





Add highlights and shading as desired. After applying, clean up the layers using the outline layer and magic wand. This great tip comes from @hippiechos and her great tutorial found here.

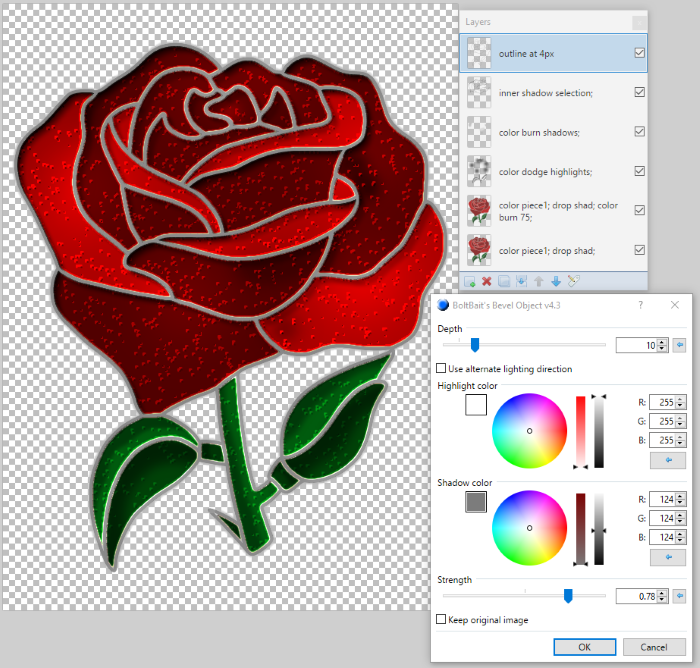

If you want to add a little extra 'ompf' to your 'lead', move the outline to the top and make visible (check it).  Use BoltBait's Bevel Object at approx. these settings.  (Effects--->Object)





Most of these plugin settings are very flexible.  The only one that isn't is the Noise.  If you add too much, you will just have a mess!

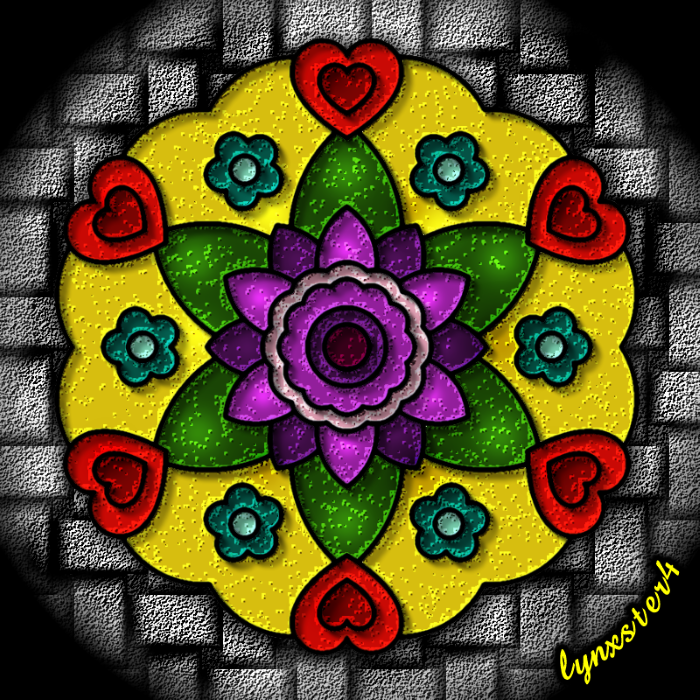

Here are (2) quick examples of mandalas I made in an on-line generator.  I colored them myself and applied most of the above steps, except the drop shadow for the 'lead', as they didn't have spaces between the pieces.  It was thin black lines.  Not bad, I think!





I hope you enjoyed this tutorial.  I'd love to see what interesting 'stained glass' you can make!



EDIT:  Enlarged last two images
