How to make a Glassy Vase

[yellowman]

Moderators Note: Pixey has republished this excellent tutorial with Yellowman's permission.



Find the updated version here: https://forums.getpaint.net/index.php?/topic/111575-how-to-make-a-glassy-vase/



Part-2
In this part we will make this glassy vase:


Plugins needed for this tutorial are

1-Shape 3D, by MKT, visit plugin page http://forums.getpaint.net/index.php?showtopic=18968
2-Octagonal/quad reshape/matte   or    Quadrilateral Reshape by evanolds, visit plugin page http://forums.getpaint.net/index.php?showtopic=13003
3-Splashes, by MadJik, visit plugin page http://forums.getpaint.net/index.php?showtopic=9300
4-Polar transformation, by MadJik, visit plugin page http://forums.getpaint.net/index.php?showtopic=9364
5-Transparency,by BoltBait,visit plugin page http://forums.getpaint.net/index.php?showtopic=2800


Lets start:
1-Start with new file 800w by 780h pixel(larger canvas better result)
2-Fill it with black, this is the background layer
3-Add new layer, name it body interior and fill it with transparent white 40:


4-Add new layer,name it body exterior, if you are planing to add some Inscriptions then add them to this layer(like lines, rings, stars or any shapes) I will add some transparent green paint leak lets see how:
5-Fill exterior layer with white, use Splash plugin(find it in Effect>Render>Splashes) and make your splash shape (you can choose your own color) and fill inside with same color, like this:




6-Convert the splash from polar effect to rectangle effect using Polar transformation and choose Transform polar to Rectangle effect option(find it in Effect>Distort>Polar transformation):


7-Add some transparency (-80) to body exterior layer using Transparency plugin (find it in Adjustments>Transparency):


8-Add new layer, name it highlight and draw some white thin rectangles starting from top to bottom:


Use Linear Gradient with Transparency Mode to fade up the top and the bottom of the white rectangles created above:


9-Make the secondary color black, open Canvas Size ( Find it in Image>Canvas Size)and change the image height from 780 to 800 pix choosing Middle anchor:


10-Now select body interior layer, open Shape 3D plugin and apply these effect and values showing in 12 red arrows in the image below:
Hint: Don't reset the effects and values those you made in Shape 3D plugin, cause we will use them almost same in some other layers, or you can save them as XML(find it in the plugin taskbar) and reload them when it needs.(thanks Goonfella for this tip)


11-Select body exterior layer and apply Shape 3D plugin changing only these 2 values from step 10:


12-Select highlight layer and apply Shape 3D with same values in step 11 changing only the Texture Map from Half Cylinder Map(repeat) to Half Cylinder Map and turn off the light, then use the Transparency Mode gradient to fade up the highlights if they look too bright:


13-Make sure the top layer is the highlight then body exterior then body interior then merge them and name they resulted layer body, you should get an image like this:


We are done from the vases body, lets move now to the head and base:
14-Turn off the body layer( for better view) and add a new layer name it head and fill it with transparent white 40:

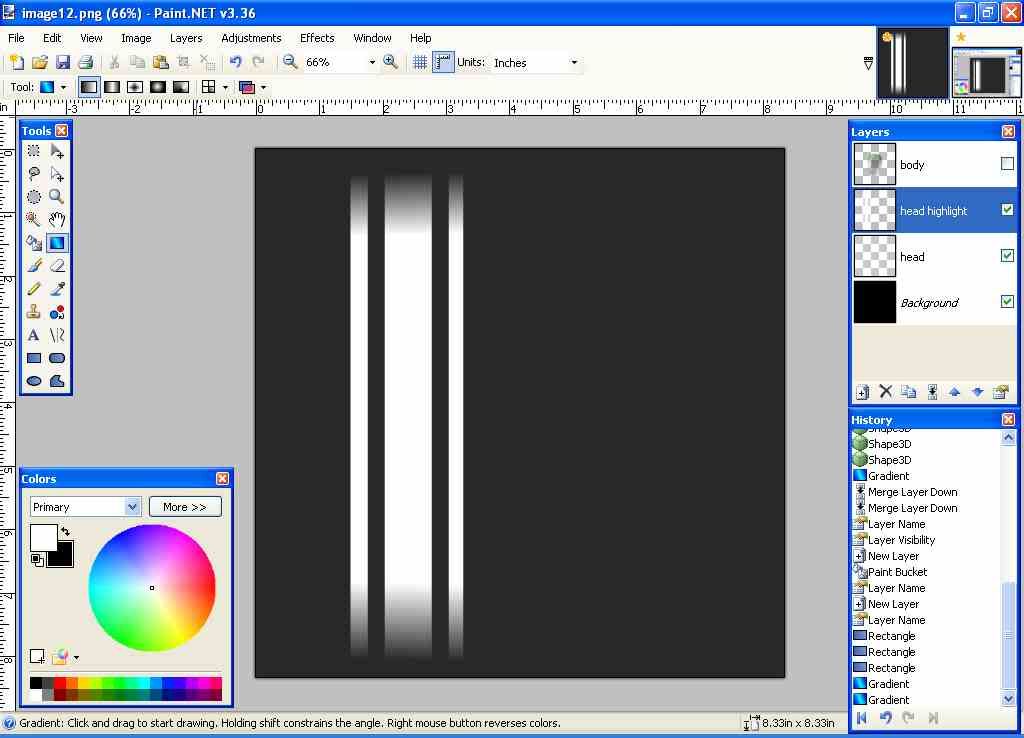

15-Add new layer and name it head highlight and draw white rectangles something similar as in step "8" above:


15-Open Shape 3D on head layer and Reset All old values and apply these new values shown in red arrows:


16-Select head highlight layer and apply Shape 3D with same previous values changing only Texture Map from Half...(repeat) to Half Cylinder Map and turn off the light, you will get this shape:


17-Now lets add thickness to head, duplicate head layer and open Rotate/Zoom (find it in: Layers>Rotate/Zoom) with these values:
Hint: If you like to use different values then play with Zoom and Pan effects to align the image so the top ring in two layers sit well exactly on each other.
Then merge the two head layers to get some thing like this:


18-Make sure the head highlight layer is on top of head layer then merge both, Don't merge them with body layer (which is already off)...!
Then add new layer and draw a white ellipse with 4 pixels width on the top ring of head layer, align or re-shape it if it needs using Move Selected Pixels tool to sit exactly on the edges like this:


19-Use Gradient tool with Transparency Mode to add some gradient effect to the ellipse then merge it with head layer:


20-Use Bulge effect( find it in: Effect>Distort>Bulge) to add some curvature to right and left side of the cylinder shape in head layer:
-For right side:


-And for left side just change (1) to (-1) as shown below:


21-In this step we will use Octagonal/quad reshape/matte plugin (find it in: Effect>Octagonal/quad reshape/matte) and this plugin has no values to play with, so it all depend on you on how to give a cone shape to the object in head layer, in the image below, as we see we just moved the 2 knobs in bottom corners toward the center of the canvas leaving some space in between the two knobs (don't forget to choose Reshape option), any way you can shape the image as you like but turn on the body layer first to shape the head to something that match the vase body
1

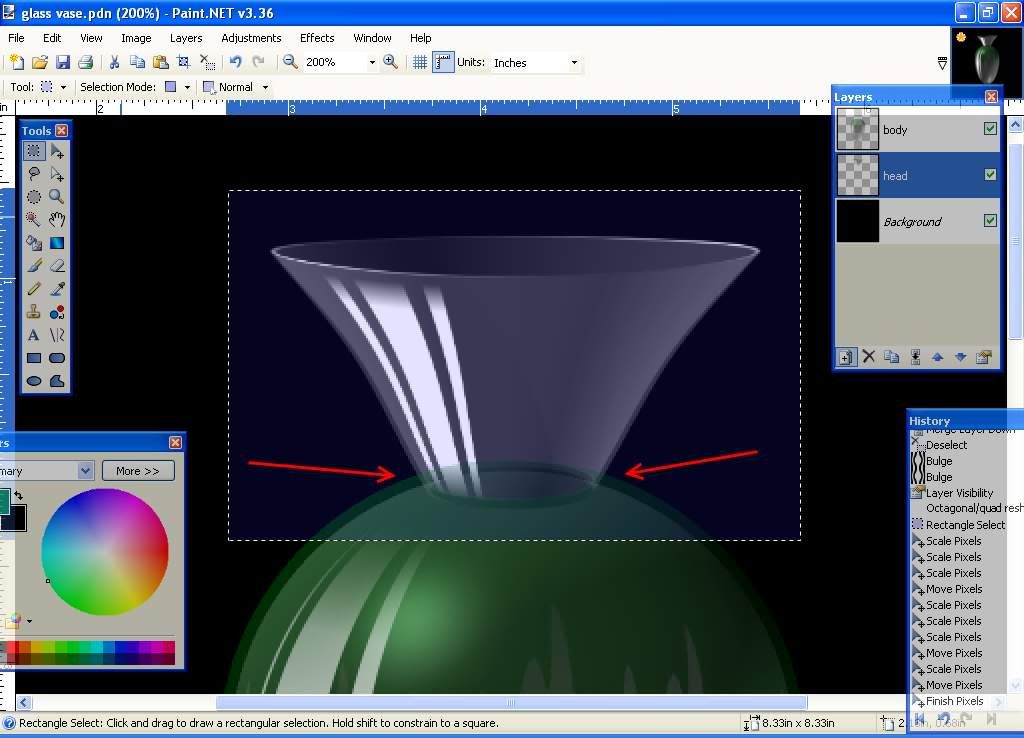

22-Select the head shape with Rectangle Select tool and size it down to make the bottom ellipse same size as the top ellipse in the body layer:


23-Now lets do the base, it is same like the head so lets go quick on it:
-Turn off body and head layers temporary.
-Add new layer name it base fill it with transparent white 40
-New layer highlight, draw the white rectangles, and give them some transparent gradient
-Apply Shape 3D with the values shown:
For base layer


For base highlight layer


-New layer for the white ellipse and apply the Transparent gradient for the bottom ring this time(see step 18)


-Merge all 3 layer for the base(base, base highlight and ellipse layers)
-Use Bulge to add some curvature to the sides
For right side


And for left side


-Turn on body and head layers, use Octagonal/quad reshape/matte plugin to create the cone shape for the base layer, this time is up side down:

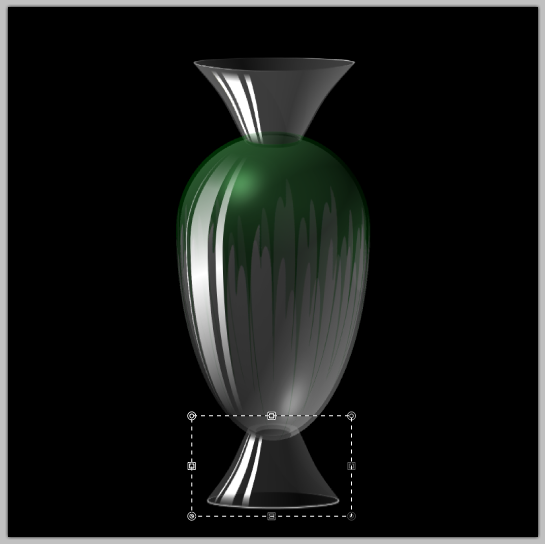

-Select the base shape with rectangle selection and reshape/resize it to sit fit in the vase base:


24-Turn the body layer to black and white, use Curves and/or Brightness/Contrast effects under Adjustments to give the 3 elements similar effects, put head on top of all then body then base and merge the 3 layers.


25-Add new layer and draw these 3 curves or as you like, using Line/Curve tool with width about 18 pixels:


26-Gaussian Blur the 3 line with a mount of 27 to 30:


27-Select vase layer and use Magic Wand with low Tolerance (15 to 20)to select the outside around the vase, then switch to other layer(layer with blurd curved lines) and hit Delete on the keyboard to cut the extra pieces from the lines.

Then add a good background or additional effect as you like or change the color (to change the color use Sepia effect then Hue/Saturation effect) to get this final glassy vase:


I hope it is clear and easy to follow, thanks for visiting.
