This effect allows you to change the color transparency separately in the R, G, and B channels.



TransparencyRGB.zip



You can find this effect in Adjustments menu.

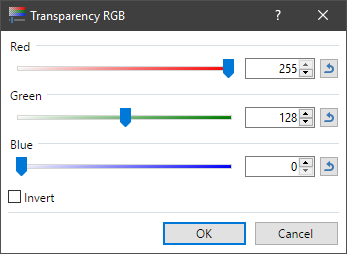

This effect has a simple intuitive interface.




The English or Russian interface of the effect is detected automatically.



Original image:




Result of applying the effect with default settings:




The result of applying the effect with the Invert checkbox checked:




CodeLab source code:

Spoiler

// Name:Transparency RGB
// Submenu:
// Author:ReMake
// Title:Transparency RGB
// Version:1.0
// Desc:Adjustment of RGB channels transparency
// Keywords:paint.net|effect|transparency|rgb
// URL:https://www.getpaint.net/redirect/plugins.html
#region UICode
IntSliderControl Amount1 = 255; // [0,255,10] Red
IntSliderControl Amount2 = 128; // [0,255,11] Green
IntSliderControl Amount3 = 0; // [0,255,12] Blue
CheckboxControl Amount4 = false; // Invert
#endregion

void Render(Surface dst, Surface src, Rectangle rect)
{
    int R,G,B,A,color;
    ColorBgra CurrentPixel;
    for (int y = rect.Top; y < rect.Bottom; y++)
    {
        if (IsCancelRequested) return;
        for (int x = rect.Left; x < rect.Right; x++)
        {
            CurrentPixel = src[x,y];
            R = CurrentPixel.R*(255 - Amount1)/255;
            G = CurrentPixel.G*(255 - Amount2)/255;
            B = CurrentPixel.B*(255 - Amount3)/255;

            color = R + G + B;
            A = 255 - color;

            if (Amount4) { A = 255 - A; }
            if (CurrentPixel.A == 0) {A = 0;}

            CurrentPixel.A = Int32Util.ClampToByte(A);

            dst[x,y] = CurrentPixel;
        }
    }
}

private void OnWindowHelpButtonClicked(IWin32Window owner, string helpContent)
{
    MessageBox.Show(owner, "Transparency RGB v1.0\n\nSeparate transparency adjustment for red,green, and blue channels.\n\nCopyright ©2020 by ReMake\nAll rights reserved.", "Transparency RGB", MessageBoxButtons.OK, MessageBoxIcon.Information);
}

and icon icon.png



If the original image had transparent sections, they will be keep.



I hope you will find a use for this effect.

Edited by ReMake
Text editing.
