make an image into glass

thiswas my very first tut.

and I'm hoping you can follow if not let me know and I'll add more pictures

very sorry for any spelling or grammer errors

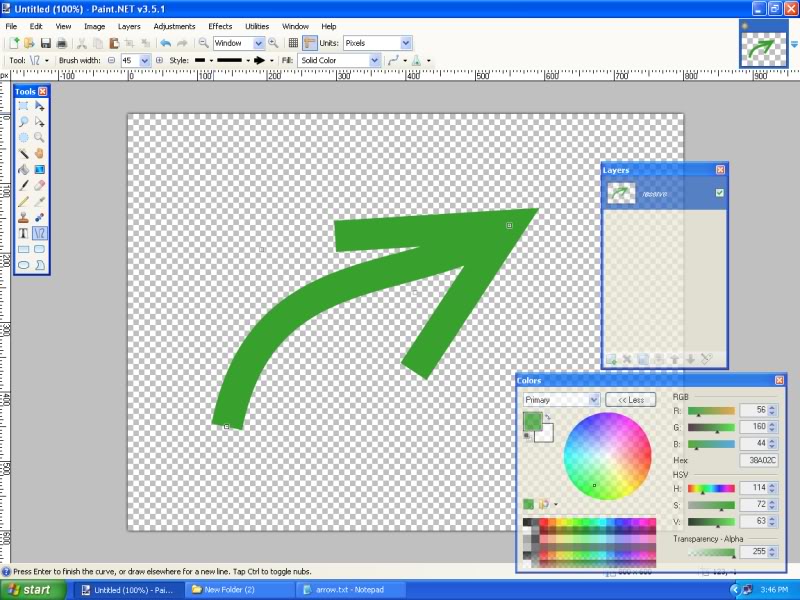

open image you need to have a solid image on transparent background

1

mark this layer reserved picture.

now duplicate this layer 4 more times mark them shadow, 1, 2, 3,

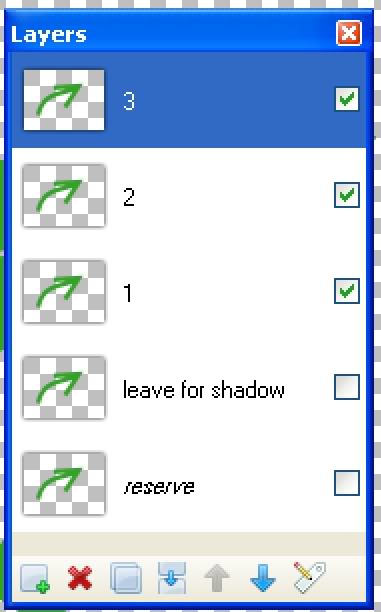

uncheck your reserved layer and uncheck the shadow layer .

2

===================================================================================

work on the layer you named #1

use hue/saturation under adjustments set both the numbers for hue and saturation to "0"

and then invert color (found under adjustments)

next you change the blend mode on this layer to lighten 26 alpha

3

4

=====================================================================================

work on layer 2

again hue/saturation same settings as above

but do not invert color on this layer

set blend mode to overlay at 131

5

6

===================================================================================

work on layer 3

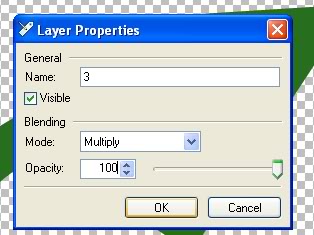

set blend mode to multiply alpha 100

7

8

=================================================================================

duplicate layer #3 and name layer 4

and set at glow alpha 86

9

10

=================================================================================

work on the shadow next.

go down and recheck the box marked shadow. make sure you just check the shadow layer and leave the orginal reserve picture unchecked.

clik anywhere outside of the arrow and then control I to invert selection. move your pixels over slightly.

change the opacity downwards until you just have a hint of colored shadow showing.

11

=================================================================================

this still only looks like a semi transparent image. that's were the refractive distortion comes in.

in this case you require a grid.

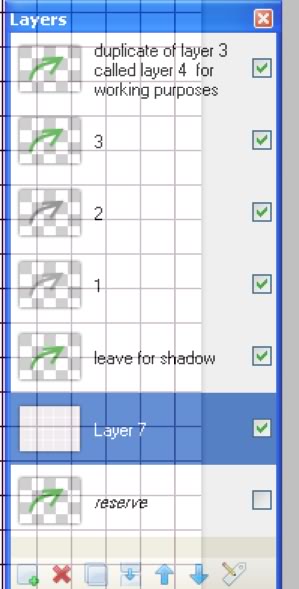

use grid maker plugin and add a grid between the reserve layer and the shadow layer

set tolerance of wand to 0

go down to the reserve layer clik anywhere outside the arrow and invert selection ( control + i )

this next bit is done on the grid layer

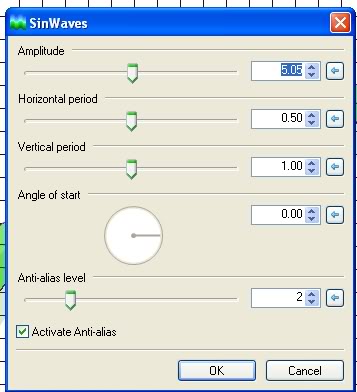

will sinwave I used .50 and 1.5 here

12

13

14

Posted

yes it is a little complicate but does turn a solid picture to glass quality

from this


I twisted once using 3d cylinder


I dd this one fairly quickly but think I should maybe decrease all the layers alpha next time around and increase the end glow alpha upwards

each picture is a bit different and each color varies as well.

did find that the best photos have many shade variations.

Posted

I am glad Oma did this, she asked me but lol well my tut writing is longer and more complicated. She wanted my glass effect on a piece I did but it was a random occurrance with cheats and it took a hundred steps or so. This tut is simple by comparison. good job oma.

retired from PDN forums. Later dewds

Posted

thanks verndewd and madhatter

it was hard to condense to a few steps what I do to get glass. this is just the start and then there are plenty of curves+ and sharpens to get to the items I display in my gallery on deviant art.

if you all haven't seen my gallery on deviant art just click the link below my sig here. it will take you to the gallery any of the pictures can be clicked and you will get my notes (if I put any) a better view of the item, and you can read any comments or questions and answeres

thanks OMA

Posted


(hides behind cupboard) ask and I shall reveal :P

What is missing is the absolute joy of using luminosity. This is your image oma from step one.

the sides are made with drop shadow in the same color the corners are drawn with line tool and then blurred(gaussian). then I selected the sides and used line gradient black to give it upward appearance and downward appearance. in other words i used 2 layers to create an actual 3d imageand used drop shadows to build the walls up and down. after selecting the walls and using a gradient to give the illusion of a standing wall, after the lines were drawn at the edges on the top layer i lowered the opaque level and drew the lines up from the bottom,

Then I used luminosity to make it bright and then dark again and used sharpen at 20. I usually do my sheen or shine with 3 points on luminosity.first point up second down and third up mildly.

retired from PDN forums. Later dewds

Posted
@verndewd thanks! you've written part two of my feeble tut attempt. I'm going to have to try this you don't have any screen shots do you? you tut dodger you.

:wink:

I knew i hid behind the cupboard for a reason. :P read my shiny things tut

retired from PDN forums. Later dewds

Posted

Good work OMA, sometime a bit hard to follow...

(I first think you'll also explain how you made the shape of the arrow...)

For the shadow, I disagree with Ash, it (the shadow) is not a volume like a lens so it shouldn't distort the grid...

BTW: All this remember me old things:

viewtopic.php?p=18756#p18756

I made this from the tut for PS here:

http://www.cagedflame.com/index.php?name=glass.php


viewtopic.php?p=18822#p18822

Water drop on a wall near a beach...

th_waterdrop.png 8)

Some other old stuff in the same idea:

viewtopic.php?p=17170#p17170

viewtopic.php?p=17312#p17312

And the translucid pils for BarkBark00:

viewtopic.php?p=17411#p17411

from a tut for PS

http://www.photoshopgurus.com/tutorials/t031.html

Posted

OK Ash explain do you have a picture to show me what you mean.

I tried filling a colored glass just now with water and putting a light next to it , either my eyes are getting worse or I've no idea what I'm supposed to be looking for. from what I'm reading from your post I should distort the shadow and not the grid under the shadow... is that it?

thanks

Posted

Ok, just a quick job.

Notice on the 2nd image I took away the glass and also make the shadow under the glass a bit darker. So you can see which part is being distorted.

Keep in mind this is only to show the shadow needs to be distorted too.

If I were to really work on a project.

I will have to make the shadow distort acording to each side of the glass as it will affect the distortion rate a bit.

I will also have to make different part of the shadow different brightness since different amount of light will pass.



Hope this helps :)

Oops :oops:

Sorry for the confusion!

Not a problem :D :!:


All creations Ash + Paint.NET [ Googlepage | deviantArt | Club PDN | PDN Fan ]

Posted



I like to exaggerate the distortion with dents. My shadows need a touch up here and there.

grid,Dents, rotate/zoom

shape 3d,gradients (secret sauce), bulge, polar conversion


retired from PDN forums. Later dewds

  • 2 weeks later...
Posted

First of all, thanks for the intriguing tutorial. Very nicely done.

Second, to the meat:

After attempting another hot tutorial, drakaan's BarkBark00's Signature tutorial, I took the results and had a go with your Image into Glass process. The results were . . . barely, almost, not really, but nearly-tolerably passable. But not quite. I think my major (yes, one of my major, I have many) problem(s) struck around grid-time. I screenshot my virtual life at the time, hoping to mooch a little more friendly assistance:


Also, here's a side-by-side (er, top to bottom, anyway) comparison of the original and the glassified failure:


So: thanks, nice work, and please help . . . when you get the chance.


... I should have been a pair of ragged claws ... - T.S. Eliot

Taboo Monkey Blue Blog: Writing on Writing - Sudoku Tips and Tricks - The Greatest Maze

Posted

:idea: Did you read my tips a few posts up?

Different shape glass will distort the background differently.

And you shouldn't be using the image as shadow.

Shadow try to use light gray and the glass' shadow use the glass' color.

But give some bright spots/zones cuz class tube acts kinda like a magnifying glass.

And the grid doesn't always distort using sine waves. :idea:

See if that helps.


All creations Ash + Paint.NET [ Googlepage | deviantArt | Club PDN | PDN Fan ]
