Dashed Lines - Setting the Length of the Gap and the Solid Bit


Recommended Posts

I need to draw a dashed line with a bit of the bezier curve action.



However, I need to set the length of the gap between the solid bits myself (I need 12px) and I also need to set the length of the solid bit (also 12px in my present requirement, but might differ in future requirements). (The width of the line has to be something different entirely, namely 16px in the present case.)



Is there any way to set the lengths of the gap and solid bit of a dashed line to both 12px?



Is there any way to set the length of the gap to 12px and the length of the solid bit to something else, eg 24px?



I need to do this where I can curve the line afterwards with the bezier node point things.



Edited by JAA
Link to comment
Share on other sites

  • JAA changed the title to Dashed Lines - Setting the Length of the Gap and the Solid Bit

Thanks for the reply, but I cannot seem to get the addon appearing in Paint.Net when I restart.



1. I download the zip and unzip it.

2. I put the two OptionBasedLibrary vX.X.dll/.dlc into my main Paint.net folder.

3. I put the two ParallelLines.Effect.dll/dlc into the Effects folder.

4. I check for any need for unblocking. (The button did not exist, so that seems fine.)

5. When I restart, the effect is not there: Menu->Effects->Render->Parallel Lines and Patterns



Any idea what I might be doing wrong?



Link to comment
Share on other sites

Did you restart paint.net after you downloaded the Plugin?      Sorry I see that you said you re-started it.



Are you using the Classic version of opaint.net, or the store bought?


How I made Jennifer & Halle in Paint.net

My Gallery | My Deviant Art

"Rescuing one animal may not change the world, but for that animal their world is changed forever!" anon.


Link to comment
Share on other sites

1 hour ago, JAA said:

2. I put the two OptionBasedLibrary vX.X.dll/.dlc into my main Paint.net folder.



You must put these into the File Types Folder.


How I made Jennifer & Halle in Paint.net

My Gallery | My Deviant Art

"Rescuing one animal may not change the world, but for that animal their world is changed forever!" anon.


Link to comment
Share on other sites

23 minutes ago, Pixey said:



You must put these into the File Types Folder.



As per your suggestion, I have tried this, but still it does not work.



I am using the Classic version if that is important.



Link to comment
Share on other sites

2 minutes ago, JAA said:



As per your suggestion, I have tried this, but still it does not work.



I am using the Classic version if that is important.





Are you using the latest version of paint.net, which is 4.3.12?



If you could, can you take a screen shot of your Effects Folder, and File Types folder to see the placement of these dlc/dll's.


How I made Jennifer & Halle in Paint.net

My Gallery | My Deviant Art

"Rescuing one animal may not change the world, but for that animal their world is changed forever!" anon.


Link to comment
Share on other sites

I see they are not there in the Effecst Folder.  Please try dragging them into your Effects folder (use copy) and see what happens:

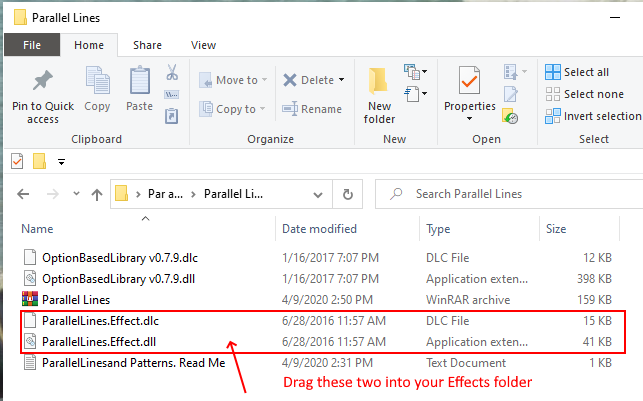

Drag-into-folder.png      If they are in the main PDN folder, remove them.


How I made Jennifer & Halle in Paint.net

My Gallery | My Deviant Art

"Rescuing one animal may not change the world, but for that animal their world is changed forever!" anon.


Link to comment
Share on other sites

I am confused. The Effects folder is my second picture (the one with '64 items' in the bottom left corner). In which case ParalleLines.Effect.dlc and dll are the 2nd and 3rd file in the picture.

Link to comment
Share on other sites

54 minutes ago, JAA said:

I am confused. The Effects folder is my second picture (the one with '64 items' in the bottom left corner). In which case ParalleLines.Effect.dlc and dll are the 2nd and 3rd file in the picture.



Yes, correct.  (I need to re-visit Specksavers 😂).



But do you still have them in the main Paint.net folder too?  If so, please remove them from there.



6 hours ago, JAA said:



2. I put the two OptionBasedLibrary vX.X.dll/.dlc into my main Paint.net folder.




How I made Jennifer & Halle in Paint.net

My Gallery | My Deviant Art

"Rescuing one animal may not change the world, but for that animal their world is changed forever!" anon.


Link to comment
Share on other sites

12 minutes ago, Pixey said:



Yes, correct.



But do you still have them in the main Paint.net folder too?  If so, please remove them from there.







The only ParallelLines files I have anywhere in my Paint.Net folder are in the two folders shown in the pictures. (I moved OptionBasedLibrary vX.X.dll/.dlc out of my main Paint.net folder when you first suggested I do so.)

Link to comment
Share on other sites

I must apologize for all of this, as I'm confused as well.  I do know that the placements of these dlls/dlc's have changed as paint.net has progressed.  As read in @midora's Read Me - it is as thus now:



Copy the two files OptionBasedLibrary vX.X.dll/.dlc to the Paint.NET\ folder (NOT to Paint.NET\Effects\ !!!) A typical location is "C:\Program Files\Paint.NET".
Copy the two files 'ParallelLines.Effect.dll/dlc' to the Paint.NET\Effects\ folder. A typical location is "C:\Program Files\Paint.NET\Effects".



If this still doesn't work, I think @midora will see this post and assist.



Again, do forgive me for confusing you.


  • Like 1
  • Hugs 1


How I made Jennifer & Halle in Paint.net

My Gallery | My Deviant Art

"Rescuing one animal may not change the world, but for that animal their world is changed forever!" anon.


Link to comment
Share on other sites

14 minutes ago, Pixey said:

I must apologize for all of this, as I'm confused as well.  I do know that the placements of these dlls/dlc's have changed as paint.net has progressed.  As read in @midora's Read Me - it is as thus now:



Copy the two files OptionBasedLibrary vX.X.dll/.dlc to the Paint.NET\ folder (NOT to Paint.NET\Effects\ !!!) A typical location is "C:\Program Files\Paint.NET".
Copy the two files 'ParallelLines.Effect.dll/dlc' to the Paint.NET\Effects\ folder. A typical location is "C:\Program Files\Paint.NET\Effects".



If this still doesn't work, I think @midora will see this post and assist.



Again, do forgive me for confusing you.




I have put all files in the directories as suggesred in this post. It still does not work.



It was very kind of you to suggest this addon as a possible solution to my original query. So thank you.



All there seems to be is a problem with getting this addon to register on my computer. Hopefully @midora can help.



Thanks again for your help so far.



I think once before I could not get an addon (suggested by someone in one of my previous questions) to register. I think that was extracted from a zip file. Other addons that go through some type of install process from an exe work every time.  I am starting to get a hunch it might be related to that in some way.









Link to comment
Share on other sites

1. Download the .zip file (may require your browser opening a new tab, to do this).
2. Right click then Scan it with Microsoft Defender... assuming all safe, continue.Never sure if Defender does this automatically with downloads?
3. Right click and choose 'Extract all'... then

3.a close Pdn.
4. Copy and paste the whole folder called 'Parallel Lines' into the Pdn/Effects folder. This contains the 'OptionBased' based stuff and the .dlls etc.

5.Restart Pdn.

Hope that helps!  (hope it works for you too) ... I've just done this and it works for me. @midora really should tidy up the installation instructions!🤨



Sadly I don't think Parallel Lines will allow you to specify the breaks in a dotted line - I believe it is dependant upon line width when using G.D.I.+... but may be wrong.



  • Like 1



Red ochre Plugin pack.............. Diabolical Drawings ................Real Paintings




Link to comment
Share on other sites

2 hours ago, Pixey said:

Copy the two files OptionBasedLibrary vX.X.dll/.dlc to the Paint.NET\ folder (NOT to Paint.NET\Effects\ !!!) A typical location is "C:\Program Files\Paint.NET".
Copy the two files 'ParallelLines.Effect.dll/dlc' to the Paint.NET\Effects\ folder. A typical location is "C:\Program Files\Paint.NET\Effects".



This is incorrect -- no files should ever be placed in the Paint.NET folder. They always go into Effects, FileTypes, Shapes, or sub-folders within (for multi-file plugins).

  • Like 1
  • Upvote 1
