Archimedean Spiral (May 6, 2022)


VeLC

Recommended Posts

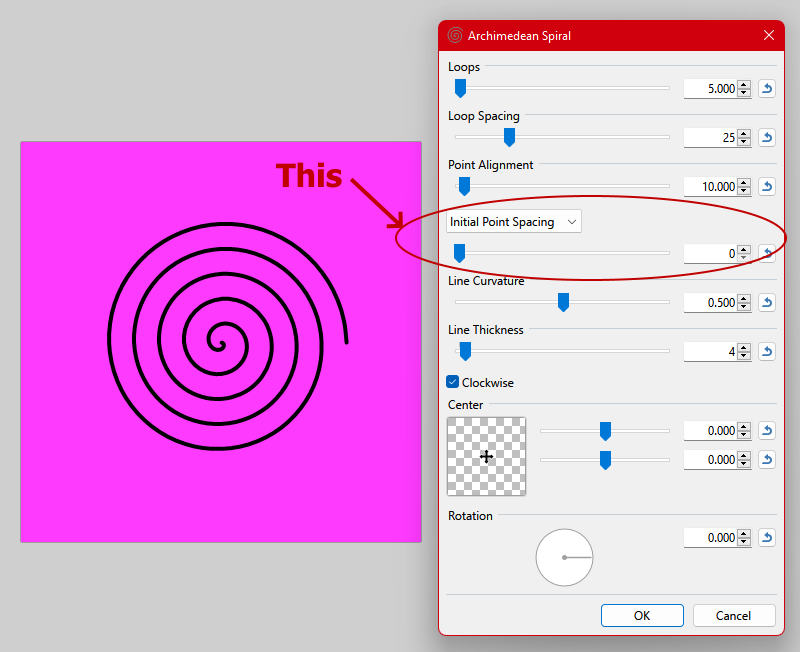

Draws an Archimedean spiral




Found in Effects > Render



Versions:

1.0(20220502) - Initial Release

1.1(20220503) - Add option for Initial Loop Number / larger Initial Point Offset increments

1.2(20220506) - Fix Initial Point Offset "typo"



C# Code Snippet (Modified from CodeLab generated code)

License: LPGL-3.0



Spoiler
        protected override void OnRender(Rectangle[] rois, int startIndex, int length)
        {
            if (length == 0 || IsCancelRequested)
            {
                return;
            }

            using CancellationTokenSource cts = new();
            using System.Timers.Timer timer = new(20);
            timer.AutoReset = true;
            timer.Elapsed += (s, e) =>
            {
                if (IsCancelRequested)
                {
                    cts.Cancel();
                }
            };
            timer.Start();

            try
            {
                Render(DstArgs.Surface, SrcArgs.Surface, EnvironmentParameters.SelectionBounds, cts.Token);
            }
            catch (OperationCanceledException)
            {
            }
            timer.Stop();
        }

        #region UICode
        private DoubleSliderControl loops = 5; // [2,1000] Loops
        private IntSliderControl spacing = 25; // [1,100] Loop Spacing
        private DoubleSliderControl step = 10; // [1,360] Point Alignment
        private ListBoxControl offsetType = 1; // |Initial Loop Number|Initial Point Offset
        private IntSliderControl offset = 0; // [0,100]
        private DoubleSliderControl tension = 0.5; // [0,1] Line Curvature
        private IntSliderControl width = 1; // [1,100] Line Width
        private CheckboxControl clockwise = true; // Clockwise
        private PanSliderControl center = Pair.Create(0.000, 0.000); // Center
        private AngleControl rotation = 0; // [0,360] Rotation
        #endregion

        private PointF[] cachedPoints;
        private State cachedState;

        private void Render(Surface dst, Surface src, Rectangle rect, CancellationToken token)
        {
            dst.CopySurface(src, rect.Location, rect);

            using Graphics g = new RenderArgs(dst).Graphics;
            using Region gClipRegion = new(rect);

            g.Clip = gClipRegion;
            g.SmoothingMode = SmoothingMode.AntiAlias;
            g.TextRenderingHint = TextRenderingHint.AntiAlias;

            float centerX = (float)(rect.Left + (center.First + 1) / 2 * rect.Width);
            float centerY = (float)(rect.Top + (center.Second + 1) / 2 * rect.Height);

            g.TranslateTransform(centerX, centerY);
            g.RotateTransform((float)-rotation);

            if (IsCancelRequested) return;

            PointF[] points;
            State state = new(this);

            if (state.Equals(cachedState))
            {
                points = cachedPoints;
            }
            else
            {
                double a = offsetType == 1 ? offset : offset * spacing;
                double b = spacing / 360.0;
                double toRad = Math.PI / (clockwise ? 180 : -180);

                points = Enumerable
                    .Range(0, (int)(loops * 360 / step + 1))
                    .AsParallel()
                    .AsOrdered()
                    .WithCancellation(token)
                    .Select(i =>
                    {
                        double theta = i * step;
                        double r = a + b * theta;
                        double rad = theta * toRad;

                        (double sin, double cos) = Math.SinCos(rad);
                        float x = (float)(r * cos);
                        float y = (float)(r * sin);
                        return new PointF(x, y);
                    })
                    .ToArray();
            }

            using Pen pen = new(EnvironmentParameters.PrimaryColor, width);
            pen.StartCap = LineCap.Round;
            pen.EndCap = LineCap.Round;
            g.DrawCurve(pen, points, (float)tension);

            cachedPoints = points;
            cachedState = state;
        }

        internal class State
        {
            private readonly double loops;
            private readonly int spacing;
            private readonly double step;
            private readonly byte offsetType;
            private readonly int offset;
            private readonly bool clockwise;

            public State(ArchimedeanSpiralEffectPlugin plugin)
            {
                loops = plugin.loops;
                spacing = plugin.spacing;
                step = plugin.step;
                offsetType = plugin.offsetType;
                offset = plugin.offset;
                clockwise = plugin.clockwise;
            }

            public override bool Equals(object obj)
            {
                return obj is State state &&
                       loops == state.loops &&
                       spacing == state.spacing &&
                       step == state.step &&
                       offsetType == state.offsetType &&
                       offset == state.offset &&
                       clockwise == state.clockwise;
            }

            public override int GetHashCode()
            {
                return HashCode.Combine(loops, spacing, step, offsetType, offset, clockwise);
            }
        }
    }









ArchimedeanSpiral.zip

Edited by VeLC
Version 1.2
  • Like 5
  • Upvote 1
