Hitomezashi Stitch - 1/9/2022


Recommended Posts

This plugin basically generates Hitomezashi Stitch. Code is based on the spreadsheet found in this place - https://aperiodical.com/2020/12/mobile-numbers-hitomezashi-stitching/



The plugin itself is very simple, and speaks for itself. No instruction or clarification needed other than it's under Texture.



Download Link : Hitomezashi.zip



Preview:


Source Code:

Spoiler
// Name: Hitomezashi Stitch
// Submenu: Texture
// Author: Reptorian
// Title: Hitomezashi Stitch
// Version: 1
// Desc: Generates pattern based on Hitomezashi algorithm.
// Keywords: Hitomezashi, Pattern
// URL: https://forums.getpaint.net/profile/85868-reptillian/
// Help:
#region UICode
IntSliderControl pixel_size = 20; // [1,100] Pixel Size
DoubleSliderControl init_border_size = 10; // [0,100] Border Size (%)
ColorWheelControl color_a = ColorBgra.FromBgr(0, 0, 0); // [PrimaryColor] Color A
ColorWheelControl color_b = ColorBgra.FromBgr(255, 255, 255); // [SecondaryColor] Color B
ColorWheelControl border_color = ColorBgra.FromBgr(169, 169, 169); // [DarkGray] {!init_border_size} Border Color
ReseedButtonControl seed = 0; // Reseed
#endregion

int length_w,length_h,enlarged_w,enlarged_h,old_pixel_size;
bool initialized,rebuild;
Random myRandomA,myRandomB;
Random Init = new Random();
int new_seed;
int[] vx;
int[] vy;
int[,] surface;

List<(int,int)>  Equilavance = new List<(int,int)>{(0,0)};


void PreRender(Surface dst, Surface src)
{

    if (!initialized){
        length_w=(int)(Math.Ceiling(((double)(src.Width)/pixel_size)));
        length_h=(int)(Math.Ceiling(((double)(src.Height)/pixel_size)));
        enlarged_w = length_w * pixel_size;
        enlarged_h = length_h * pixel_size;
        enlarged_w = ( enlarged_w - src.Width ) / 2;
        enlarged_h = ( enlarged_h - src.Height ) / 2;
        myRandomA = new Random(Init.Next());
        myRandomB = new Random(Init.Next());
        vx = new int[length_w];
        vy = new int[length_h];
        surface = new int[length_w,length_h];
        surface[0,0]=0;
        old_pixel_size=pixel_size;
        Equilavance.Clear();
    }

    if (old_pixel_size != pixel_size){
        length_w=(int)(Math.Ceiling(((double)(src.Width)/pixel_size)));
        length_h=(int)(Math.Ceiling(((double)(src.Height)/pixel_size)));
        enlarged_w = length_w * pixel_size;
        enlarged_h = length_h * pixel_size;
        enlarged_w = ( enlarged_w - src.Width ) / 2;
        enlarged_h = ( enlarged_h - src.Height ) / 2;
        myRandomA = new Random(Init.Next());
        myRandomB = new Random(Init.Next());
        vx = new int[length_w];
        vy = new int[length_h];
        surface = new int[length_w,length_h];
        surface[0,0]=0;
        rebuild = true;
        old_pixel_size = pixel_size;
    }

    if (!initialized||rebuild||(new_seed != seed)){
        myRandomA = new Random(Init.Next());
        myRandomB = new Random(Init.Next());
        for (int x = 0 ; x < length_w ; x++){
            vx[x]=myRandomA.Next()%2;
        }
        for (int y = 0 ; y < length_h ; y++){
            vy[y]=myRandomB.Next()%2;
        }

        for (int y = 1 ; y < length_h ; y++){
            surface[0,y]=(surface[0,y-1]+vy[y-1])%2;
        }

        for(int y = 0 ; y < length_h ; y++){
            for (int x = 1 ; x < length_w ; x++){
                surface[x,y]=(vx[x-1]+surface[x-1,y]+y+2)%2;
            }
        }
    }

    new_seed=seed;
    initialized = true;
    rebuild = false;
}

// Here is the main multi-threaded render function
// The dst canvas is broken up into rectangles and
// your job is to write to each pixel of that rectangle
void Render(Surface dst, Surface src, Rectangle rect)
{
    int val;
    int border_size=(int)((double)(pixel_size*init_border_size/100));
    if (border_size==pixel_size){border_size--;}
    bool use_border=border_size>0;
    double border_base=(double)(border_size)/2;
    int start_border=(int)(Math.Ceiling((double)(border_size)));
    int end_border=pixel_size-(int)(Math.Floor((double)(border_size)));

    int lx,ly;
    int mx=length_w-1;
    int my=length_h-1;

    int off_xl,off_xr,off_yt,off_yb,px,py;

    // Step through each row of the current rectangle
    for (int y = rect.Top; y < rect.Bottom; y++)
    {
        if (IsCancelRequested) return;
        // Step through each pixel on the current row of the rectangle
        for (int x = rect.Left; x < rect.Right; x++)
        {
            lx=((x+enlarged_w)/pixel_size)%length_w;
            ly=((y+enlarged_h)/pixel_size)%length_h;
            val = surface[lx,ly];

            if (val==1){dst[x,y] = color_a;}
            else{ dst[x,y] = color_b;}

            if (use_border){

                px=(x+enlarged_w)%pixel_size;
                py=(y+enlarged_h)%pixel_size;

                off_xl=surface[Math.Min(Math.Max(0,lx-1),mx),ly];
                off_xr=surface[Math.Min(Math.Max(0,lx+1),mx),ly];
                off_yt=surface[lx,Math.Min(Math.Max(0,ly+1),my)];
                off_yb=surface[lx,Math.Min(Math.Max(0,ly-1),my)];

                if (val != off_xl){
                    if(px<start_border){dst[x,y]=border_color;continue;}
                }
                if (val != off_xr){
                    if(px>end_border){dst[x,y]=border_color;continue;}
                }
                if (val != off_yb){
                    if(py<start_border){dst[x,y]=border_color;continue;}
                }
                if (val != off_yt){
                    if(py>end_border){dst[x,y]=border_color;continue;}
                }

            }
        }
    }
}





EDIT as of 1/8/2022 - Added Border Option

EDIT as of 1/9/2022 - Optimization by adding "continue;".

Edited by Reptillian
  • Like 1
  • Upvote 1

G'MIC Filter Developer

Link to comment
Share on other sites

  • Reptillian changed the title to Hitomezashi Stitch - 1/8/2022
Posted (edited)

New update, I added border option. I will admit that my solution for this isn't really the best. But it'll do with the limitations I have.



This is what I created:




Edited by Reptillian
  • Like 3

G'MIC Filter Developer

Link to comment
Share on other sites

  • Reptillian changed the title to Hitomezashi Stitch - 1/9/2022

Very cool plugin @Reptillian!  The border option really helps.  Thank you for this plugin...much appreciated!  💖

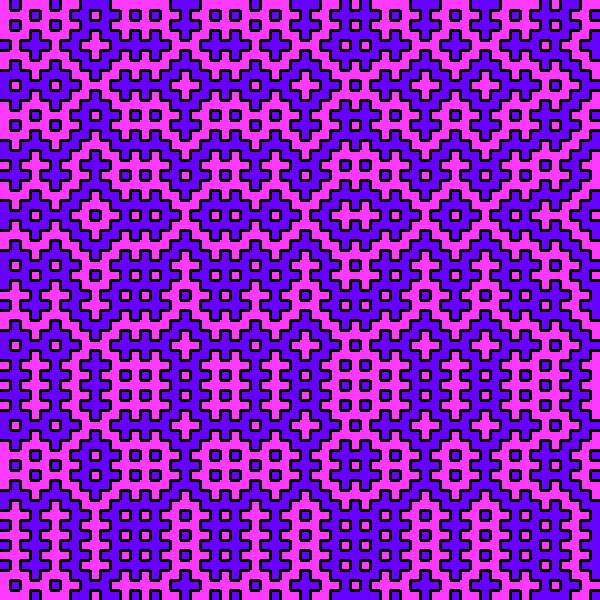

hitomezashistitch_01.png   with border

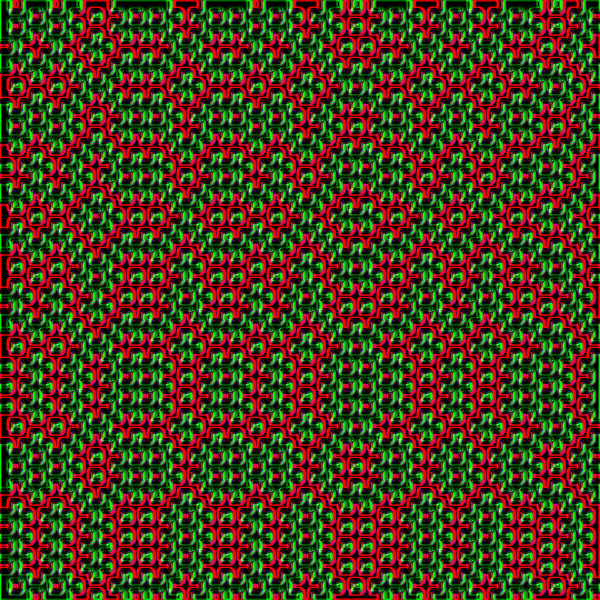

hitomezashistitch_02.png   with your emboss/relief+ plugin and convolutions. Actually looks like stitching!





  • Like 1
Link to comment
Share on other sites

Love this plugin @Reptillian. Thanks for sharing it. I created an image with just the plugin and then on the second one applied the Galaxy Transformation plugin for a different look. Enjoying that plugin in too :)



qLIUIj.png    qLIXgJ.png

  • Like 1

Click HERE to see my Pictorium of images I have worked on.




You were once wild here. Don't let them tame you.

 ~ Isadora Duncan

Link to comment
Share on other sites
