Alpha Transform (continued, updated January 22, 2022)


ReMake

Recommended Posts

This is an update of the original and slightly forgotten Alpha Transform plugin by @DW-dev. See changelog below.



This effect can be useful for creating an alpha mask of an image.



Compatible with paint.net 4.3.2+ only



Download from my PluginPack



You can find it under Adjustments -> Alpha Transform



This effect allows you to operate with the alpha value of a pixel based on an estimate of the maximum value of the R, G or B components (RGB color model) or its perceived brightness (YCbCr or YUV color model).



The pixel brightness range is determined by two thresholds. Pixels with brightness less the lower limit get alpha set to 0 (fully transparent). Pixels with brightness more the upper limit get alpha set to 255 (fully opaque). Pixels with brightness in the range between the lower and upper limits get alpha set to a value between 0 and 255 depending on their brightness.



Before:

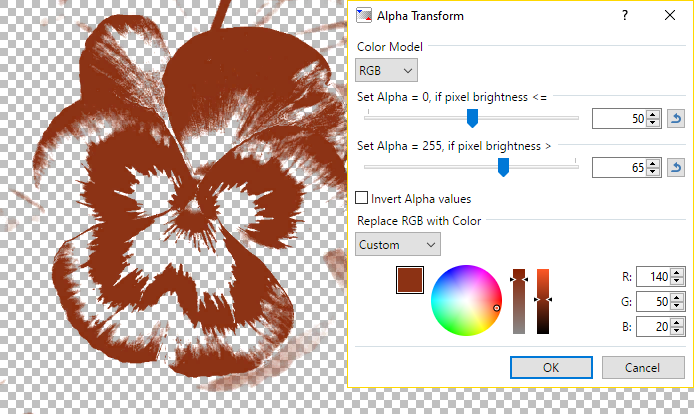

After:


Color Model - a way to estimate the brightness of a pixel:
RGB - by the maximum value of R, G, or B.
YCbCr, YUV - by perceived pixel brightness.
Set Alpha = 0 ... and Set Alpha = 255 ... is define the thresholds for changing the Alpha value.
Invert Alpha values - switch between alpha and color.
Replace RGB with Color - color selection:
Source - without color replacement
Primary / Secondary / Grayscale Custom - colors that replace the source color.



CodeLab Source

Spoiler
// Name:Alpha Transform
// Submenu:
// Author:David Wilson & ReMake
// Title:Alpha Transform
// Version:1.3
// Desc:Alpha Transform Plugin for Paint.NET
// Keywords:paint.net|effect|alpha|transform
// URL:https://www.getpaint.net/redirect/plugins.html
#region UICode
ListBoxControl<model> Model = model.RGB; // Color Model|RGB|YCbCr|YUV
IntSliderControl aLess = 0; // [0,100] Set Alpha = 0, if pixel brightness <=
IntSliderControl aMore = 100; // [0,100] Set Alpha = 255, if pixel brightness >
CheckboxControl Invert = false; // Invert Alpha values
ListBoxControl<mode> Mode = 0; // Replace RGB with color|Source|Primary|Secondary|Grayscale|Custom
ColorWheelControl Custom = ColorBgra.FromBgr(20, 50, 140); // [!] {!Mode}
#endregion

enum model
{
    RGB,
    YCbCr,
    YUV
}

enum mode
{
    Source,
    Primary,
    Secondary,
    Grayscale,
    Custom
}

void Render(Surface dst, Surface src, Rectangle rect)
{
    Rectangle selection = EnvironmentParameters.SelectionBounds;
    ColorBgra PrimaryColor = EnvironmentParameters.PrimaryColor;
    ColorBgra SecondaryColor = EnvironmentParameters.SecondaryColor;

    ColorBgra CurrentPixel;

    for (int y = rect.Top; y < rect.Bottom; y++)
    {
        if (IsCancelRequested) return;
        for (int x = rect.Left; x < rect.Right; x++)
        {
            CurrentPixel = src[x,y];
            int BR = 0;
            switch (Model)
            {
                case model.RGB:
                    BR = (byte)((double)Math.Max(CurrentPixel.R, Math.Max(CurrentPixel.G, CurrentPixel.B)) / 2.55);
                    break;
                case model.YCbCr:
                    BR = (byte)(((4731 * CurrentPixel.B + 46869 * CurrentPixel.G + 13936 * CurrentPixel.R) >> 16) / 2.55);
                    break;
                case model.YUV:
                    BR = (byte)(CurrentPixel.GetIntensityByte() / 2.55);
                    break;
            }
            BR = (BR <= aLess) ? CurrentPixel.A = 0 : ((BR > aMore) ? CurrentPixel.A = 255 : CurrentPixel.A = (byte)((BR - aLess) * 255 / (aMore - aLess)));
            if (Invert)
            {
                CurrentPixel.A = (byte)(255 - CurrentPixel.A);
            }
            switch (Mode)
            {
                case mode.Source:
                    break;
                case mode.Primary:
                    CurrentPixel.R = PrimaryColor.R;
                    CurrentPixel.G = PrimaryColor.G;
                    CurrentPixel.B = PrimaryColor.B;
                    break;
                case mode.Secondary:
                    CurrentPixel.R = SecondaryColor.R;
                    CurrentPixel.G = SecondaryColor.G;
                    CurrentPixel.B = SecondaryColor.B;
                    break;
                case mode.Grayscale:
                    CurrentPixel.R = CurrentPixel.A;
                    CurrentPixel.G = CurrentPixel.A;
                    CurrentPixel.B = CurrentPixel.A;
                    break;
                case mode.Custom:
                    CurrentPixel.R = Custom.R;
                    CurrentPixel.G = Custom.G;
                    CurrentPixel.B = Custom.B;
                    break;
            }
            dst[x,y] = CurrentPixel;
        }
    }
}
