This is my first tutorial, so please bear with me!

This is what we will be making:

Posted Image

Plugins needed:
Shape3D by MKT viewtopic.php?f=16&t=5271
Outline Object by pyrochild viewtopic.php?f=16&t=5715
Normal Map by stinger viewtopic.php?t=2973
CustomBrushesMini by Simon Brown viewtopic.php?f=16&t=30118&p=264210
Feather by BoltBait viewtopic.php?f=16&t=2498

Brushes needed:
Nebula Brushes by ME!!! viewtopic.php?f=12&t=23095&p=302859#p302859

All sizes mentioned are in pixels.

Part One: Background stars

There are two methods I recommend, first is Sharp's awesome starscape tutorial (viewtopic.php?f=31&t=31262) and the next is my simple one here.

1. Create a new canvas with the size 800x600.
Posted Image

2. Fill the canvas black.
Posted Image

3. Add Noise :AddNoise: at these levels:
Posted Image

4. Add Noise :AddNoise: (again) at these levels:
Posted Image

This creates a simple star background for you. If you're thinking about using the Sparkle plugin (yes, Madjik, I am demeaning your plugin) don't. It's unrealistic. I used it for a while then I discovered if you really focus you can find mistakes in the pixels.

EDIT: Oh yeah, just realized. Some stars when viewed from afar, are still slightly colored, so if you want, raise the color saturation to up to 10 in noise. You can also add noise at 100 Intensity, Color Saturation 0, and Coverage 0.30 and repeat with color saturation at 5. This creates some white stars and some colored stars.

Part Two: Foreground star

My favorite part! This part is optional, you may skip to the planet if you wish.

5. Add a new layer.

6. What do you want the color of your star to be? Record that! Now choose a color slightly darker than that and fill the canvas with that color. Record this color too. For this tut, I'm using the color #25A5A8.
Posted Image

7. Run Shape3D as a sphere without lighting. Depending on how big you want your star to be, adjust scaling. For this tut, I'm simply using 1.000. The reason we do this is to get the star exactly at the center, otherwise a later step will be slightly weird.
Posted Image

8. Magic wand on the incomplete star with a tolerance of 0%.
Posted Image

9. Add a new layer.

10. CustomBrushesMini! Alright, on the new layer, you still have the selection, right? Goodie! Let's run CustomBrushesMini! With the nebula brushes that I hope you have, go crazy on the layer with your star color! But make sure you still leave some transparent parts on the layer.
Posted Image

11. Deselect and merge the layer down.

12. Add a new layer.

13. Run clouds with a primary color of your star color and a secondary color of white.
Posted Image

14. Use Rotate/Zoom with the settings below.
Posted Image

15. Switch to the star layer and select the area outside the star with a tolerance of 0%.
Posted Image

16. Switch to the cloud layer and press DELETE!!
Posted Image

17. Set the cloud layer's blending mode to overlay.
Posted Image

18. Merge the layer down.

19. Duplicate the layer.

20. Run Zoom Blur on the top layer with these settings:
Posted Image

21. Set the layer blending mode to lighten and merge the layer down.
Posted Image

Your star is done! Of course, a different base color will produce a different star color.

Part Three: Planet

Now what is a spacescape without a planet! Well, most spacescapes have planets. Some just have nebulae. Some are starscapes.

22. Add a new layer.

23. Run clouds with black and white at the default settings.
Posted Image

24. Run Normal Map (in PDN effects known as Height Field to Normal Map) at the default setting.
Posted Image

25. Run Black and White in Adjustments.
Posted Image

26. What color do you want your planet to be? Well, select that color, and a slightly lighter color. I chose some preset colors. Run clouds at the settings below:
Posted Image

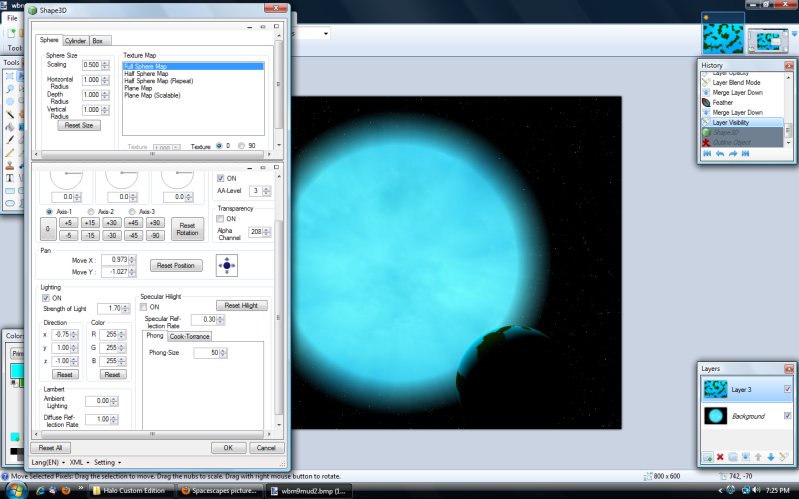

27. Run Shape3D at settings depending on your current star. Make sure Specular Highlight is off and Ambient Lighting is at 0.00. Adjust lighting until it appears to be coming from the star. And finally, how big is the planet? And where is it? Adjust scaling and position.
Posted Image

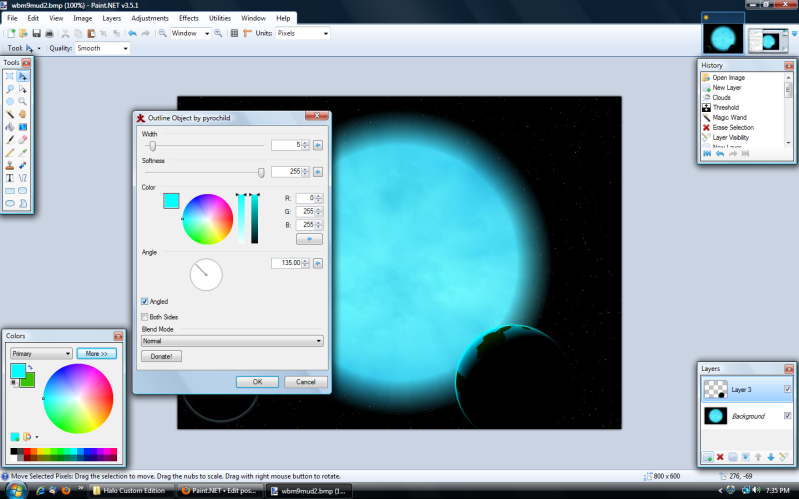

28. What color is your planet again? Run Outline Object, and in there, lighten your color a lot, but don't let it become fully white. Softness should be 255, and the width is dependent on your planet size. If you want your atmosphere to be angled, look at step 46.
Posted Image

Ta-da! Your planet is finished! Ain't that a sight?

Posted Image

If you're looking to make an earth-like planet, follow these steps:

29. Add a new layer.

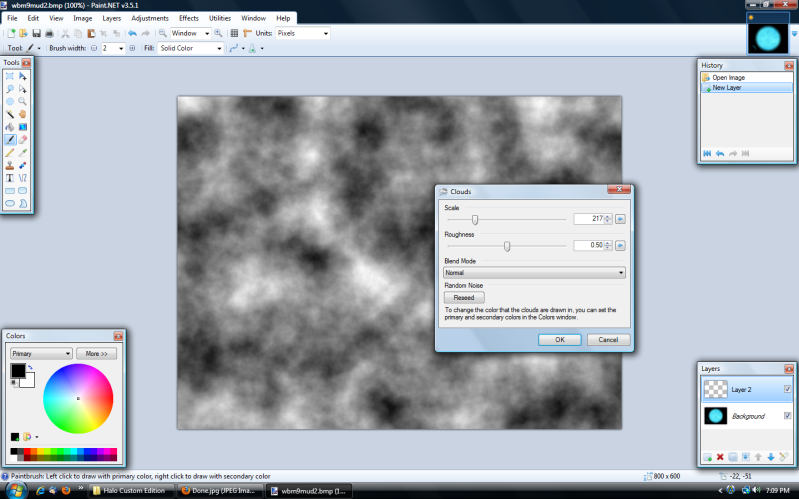

30. Run clouds at any colors. It doesn't matter. Zilch. Zip. Nil. Well, it sort of does. I really don't know. Run it at black and white with a scale of 200>250 and the default roughness.
Posted Image

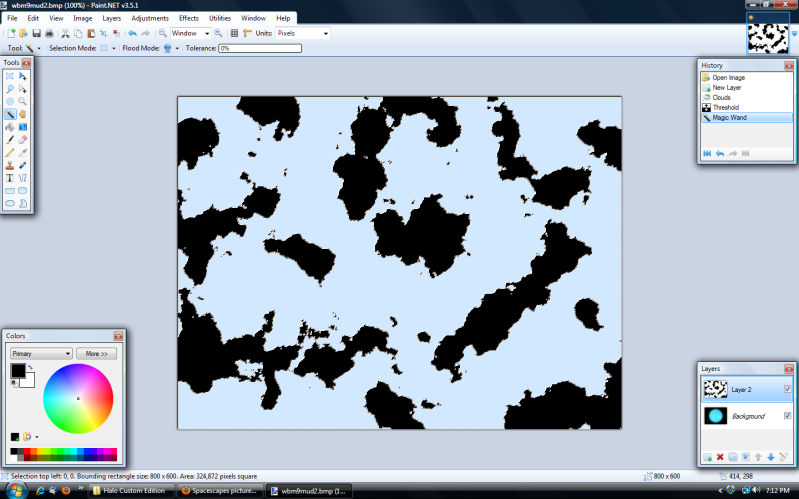

31. Run Color Threshold at any setting below 127. The earth has more water than land. Unless you want a more land than water planet.
Posted Image

32. Magic wand the whites.
Posted Image

33. Delete!
Posted Image

34. Add a new layer.

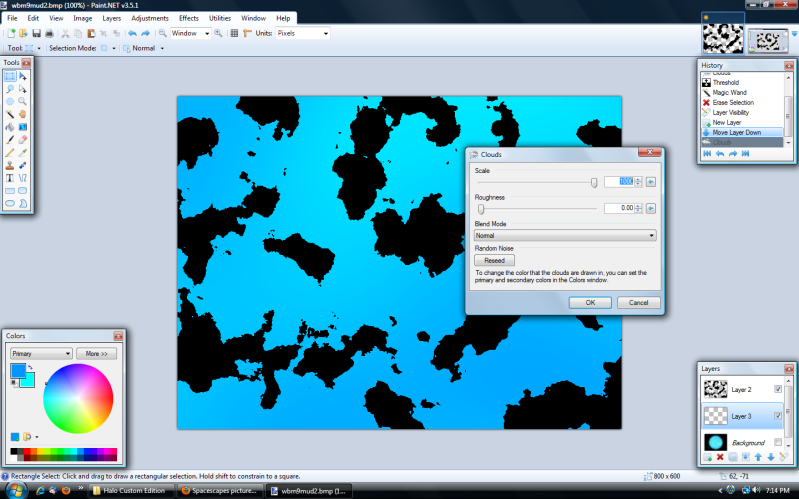

35. Run clouds at the default settings.
Posted Image

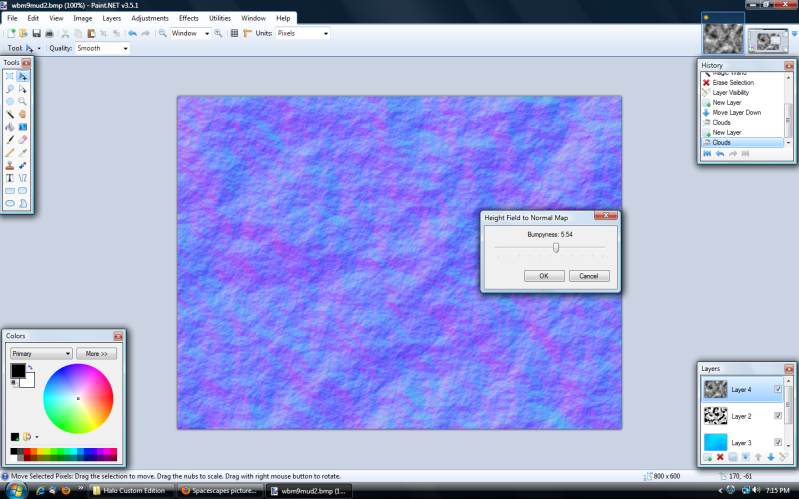

36. Run Normal Map at this setting:
Posted Image

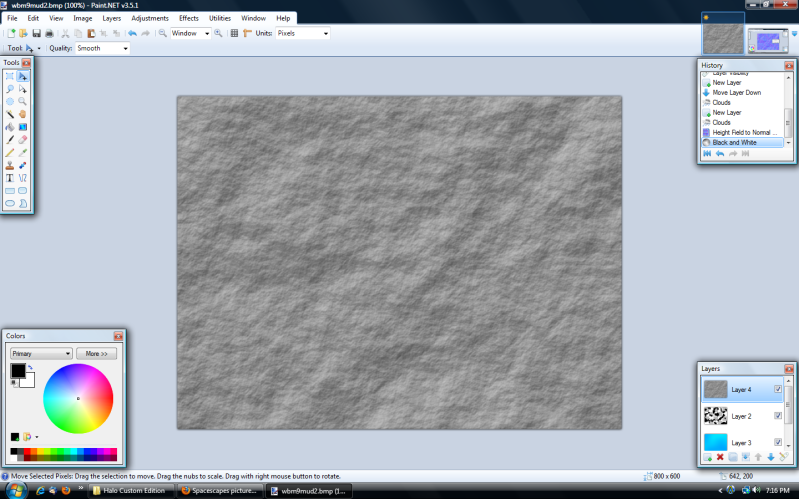

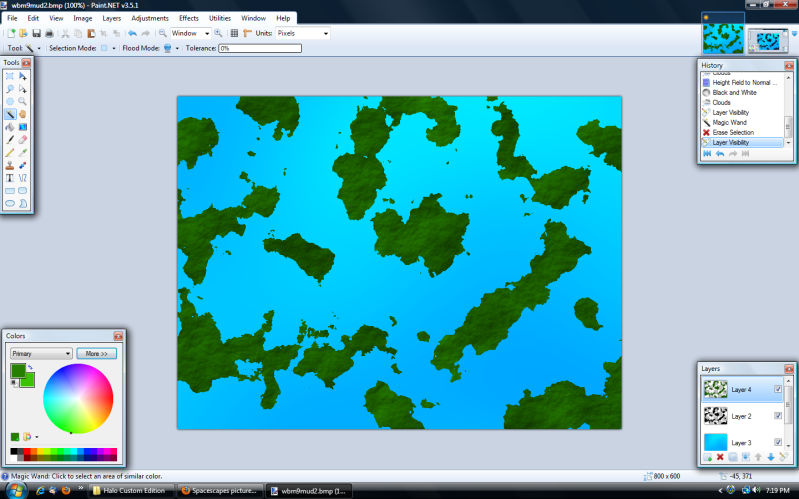

37. B&W!
Posted Image

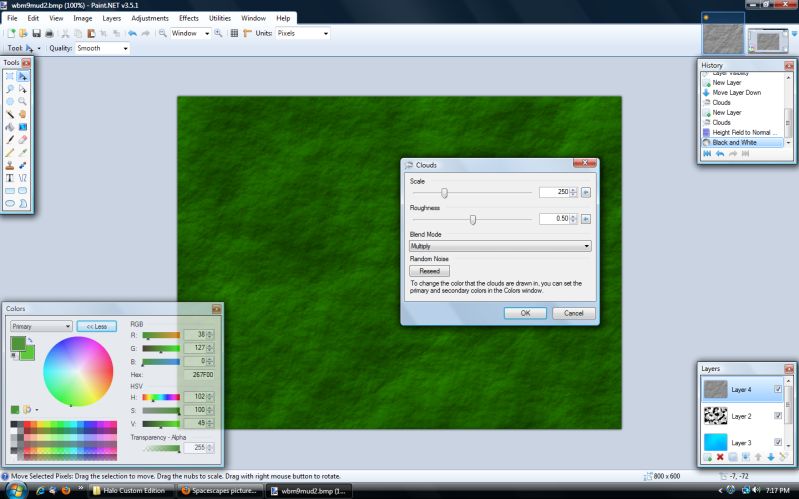

38. Green color for primary, and lighter green color for secondary, and clouds at default scale and roughness with blending mode at multiply.
Posted Image

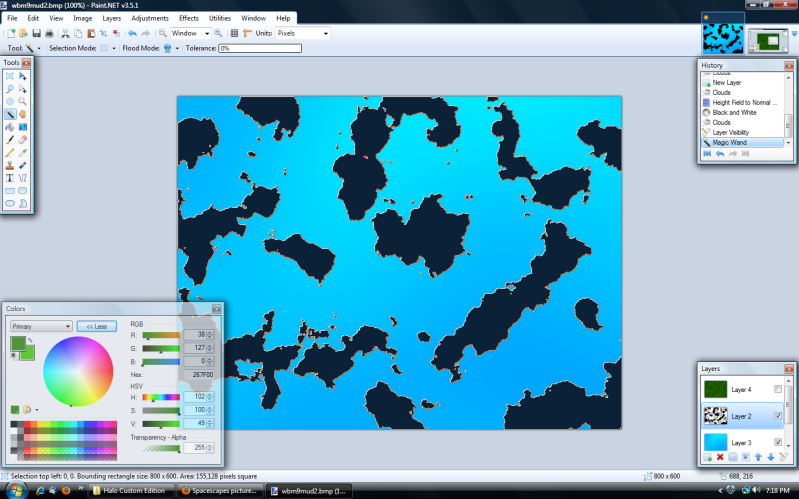

39. Switch to the black layer and magic wand the transparent part.
Posted Image

40. Switch back to the heightfield layer and DELETE! (again...)
Posted Image

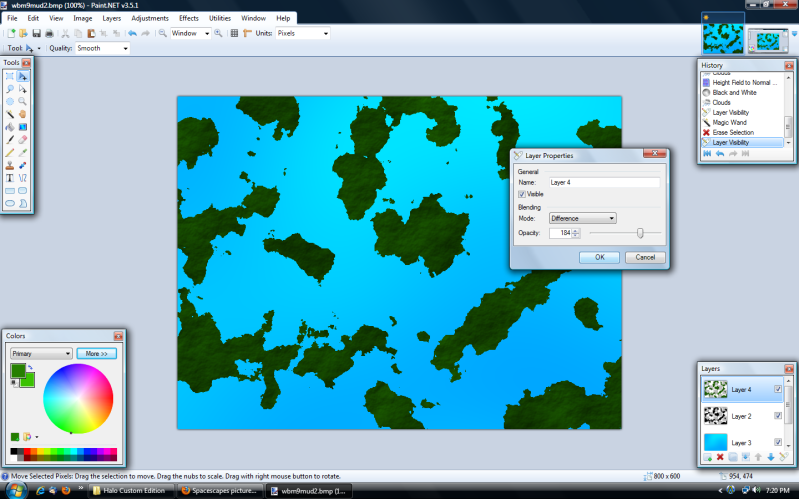

41. Set the blending mode of the layer to difference and the opacity depending on your tastes. For this tutorial, I chose 184.
Posted Image

42. Merge! the layer down. (I'm getting bored.)
Posted Image

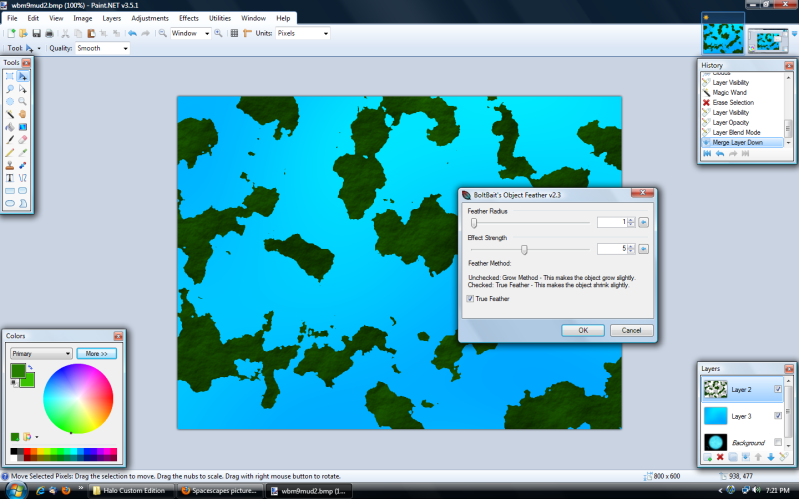

43. Run BoltBait's Feather plugin with these settings:
Posted Image

44. Merge again!

45. Run Shape3D, repeating whatever I said in step 27. You can see my settings here.
Posted Image

46. Outline Object with an Angled checked and the angle according to the lighting on your planet. 255 Softness and width depending on your planet.
Posted Image

You're done with your earth-like planet! If you want clouds for your planet, run clouds with primary color white, secondary color transparent, and the other settings whatever you want. This is the outcome.
Posted Image

I didn't do this as good as I could. So you can do better than the example I gave you for the earth-like planet. Possibly to color filter the land layer to give it a bit more of a green color.

Of course, feel free to experiment. Some parts, especially the star background, can be considered 'too easy', so mods feel free to lock this thread.

I did a bit more on this piece adding a second larger planet and a nebula behind. Excluding the earth-like planet.

Posted Image

Comments/praise/criticisms/outcomes welcome :)
