Animated Rain Tutorial


  • Please log in to reply
243 replies to this topic

#1 DarkShock

DarkShock
  • Members
  • 4,202 posts
  • LocationCentral Florida
  • Reputation:1

Posted 04 November 2007 - 06:39 PM

:!: You will need the UnFreez Program for this. You may use any GIF image animation program you want, but I'm using UnFreez in this tutorial. There is also a GIF Animator plug-in available here on the forum.

I will be working with this image:

Posted Image

And I will finish with this:

Posted Image
------------------------------------------------------------------------------------------------------------------------------------------------------------
1. Open up your image. :Warning: If you are working with a project already with more than one layer than it would be smart to flatten all of them File > Open or Control + O

2. Duplicate your background / original image twice (making three identical layers) 2x :EditCopy: Layers > Duplicate Layer or Control + Shift + D

3. Add three new layers. Fill all of the three new layers white. 3x :AddNewLayer: Layer > Add New Layer or Control + Shift + N

4. This part might sound a little tricky. Set your layers in an order so that each white layer is on top of one of the three background layers. To do so, select a white layer and move them down by pressing the blue down button on the layers window. If you moved it too far down than simply select the blue up button on the layers window to move it up to the correct location.

Example:

Posted Image

5. On the top white layer select "Add Noise" and set the Intensity to 50 and the Color Saturation at 0. [The intensity determines how much rain you get. The lower the intensity, the less rain and the other way around for a high intensity] :AddNoise: Effects > Noise > Add Noise

Posted Image

6. Do step 5 to the other two white layers. :AddNoise: Just go to the other white layers and hit Control + F to use the last used effect

7. Go back to the top white layer and select "Motion Blur" and set the angle to -55.00 degrees and the distance at 10 pixels. Make sure that the center box it checked. This step determines which direction the rain will fall. :MotionBlur: Effects > Blur > Motion Blur

Posted Image

8. Do step 7 to the other two white layers. :MotionBlur: Just go to the other white layers and hit Control + F to use the last used effect

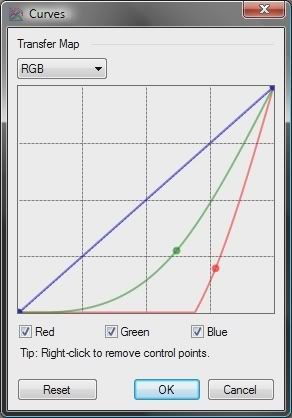

9. *This step is only if you want your rain to have color. If you want the rain to stay black than skip this step.* On your top layer select Adjustments > Sepia or Control + Shift + E :Sepia: . Then go to Adjustments > Curves or Control + Shift + M :Curves: and have it set to something like this:

Posted Image
*this is if you want your rain to be blue*
Note: The "Curves +" plug-in will work just as fine.

10. *Skip this step if you don't want colored rain.* Do step 9 to the other white layers. Just go to the other white layers and apply the sepia and curves color change. Don't use Control + F because it will apply that last used effect which should be motion blur.

11. Set the blending mode of all your rain layers (original white layers) to Multiply. You can do this by going to the layer's properties. :Properties: Layers > Properties, F4, or click the far right button on the bottom of the layer window

Posted Image

12. Now merge each rain layer into a the background layer that is below it. (Make sure not to merge any of the original layers into a rain layer) :MergeDown: Layers > Merge Layer Down, Control + M, or click the middle button on the bottom of the layers window

Posted Image Posted Image
Before------------------------------------------------------------After

13. Now copy the bottom layer and make it and image by it self. Do the same thing with the other two layers. [Click Control + A to select the whole layer. Then click Control + C to copy the whole layer. Then click Control + Alt + V to make a new image out of the copied layer]

Example:

Posted Image

14. Save each of the separate layer images as a GIF. (I'll save mine as gif1, gif2, and gif3) Do not save the original image. It can't be saved as a GIF anyways since it's layered. Just leave it alone. You can even delete it now, but it would be wise to keep it if you messed up on an earlier step.

15. Open up the UnFreez program.

16. Drag the three GIF files in the right order into the program. Click the "Make Animated Gif" button.

Posted Image

17. Choose the save location of the GIF file and name your file. Let UnFreez work its magic.

:Warning: Do not attempt to open the new animation in Paint.net and then save it because it will freeze the animation.
------------------------------------------------------------------------------------------------------------------------------------------------------------
Here is the result:

Posted Image

Okay, so maybe this tutorial wasn't quick. :P
------------------------------------------------------------------------------------------------------------------------------------------------------------

Gallery | Sig Tutorial | Animated Rain Tut | Sig Videos |PhotoBucket
2009 Signature of the Year Award winner


#2 Frenzy

Frenzy
  • Members
  • 17 posts
  • Reputation:0

Posted 04 November 2007 - 06:41 PM

THIS TUTORIAL RULES MAN!!!!!!!!!!!
Posted Image

#3 DarkShock

DarkShock
  • Members
  • 4,202 posts
  • LocationCentral Florida
  • Reputation:1

Posted 04 November 2007 - 06:47 PM

THIS TUTORIAL RULES MAN!!!!!!!!!!!

I appreciate your comment. I originally intended it to be short. :P

I'm glad you like it. :wink:

Gallery | Sig Tutorial | Animated Rain Tut | Sig Videos |PhotoBucket
2009 Signature of the Year Award winner


#4 rayaquaza

rayaquaza
  • Newbies
  • 8 posts
  • Reputation:0

Posted 04 November 2007 - 07:12 PM

MUAHAHAHAHAHA

Attached Images

  • Animated Rain.gif

Posted Image

#5 DarkShock

DarkShock
  • Members
  • 4,202 posts
  • LocationCentral Florida
  • Reputation:1

Posted 04 November 2007 - 07:14 PM

MUAHAHAHAHAHA

Nice. Did you follow the tutorial?

Gallery | Sig Tutorial | Animated Rain Tut | Sig Videos |PhotoBucket
2009 Signature of the Year Award winner


#6 Rostigalen

Rostigalen
  • Members
  • 57 posts
  • Reputation:0

Posted 04 November 2007 - 07:32 PM

This looks really good. I thought when I saw the head line that it would be more like big sized raindrops, but this is really neat.
Posted Image

#7 DarkShock

DarkShock
  • Members
  • 4,202 posts
  • LocationCentral Florida
  • Reputation:1

Posted 04 November 2007 - 07:35 PM

This looks really good. I thought when I saw the head line that it would be more like big sized raindrops, but this is really neat.

Thanks. I first learned how to make a rain image in GIMP, but then I found out you can use UnFreez and then I kind of make a PdN way of making a rain image.

Gallery | Sig Tutorial | Animated Rain Tut | Sig Videos |PhotoBucket
2009 Signature of the Year Award winner


#8 Hellfire010

Hellfire010
  • Members
  • 737 posts
  • LocationNJ, USA
  • Reputation:0

Posted 04 November 2007 - 08:10 PM

Very nice. ^_^
Posted Image

#9 rayaquaza

rayaquaza
  • Newbies
  • 8 posts
  • Reputation:0

Posted 04 November 2007 - 08:34 PM

yeah, i followed the guide.
I used the windows desktop image for lack of a better one. =p
Posted Image

#10 007 Nab

007 Nab
  • Members
  • 2,269 posts
  • LocationThe People's Republic of Socialist Romanistan
  • Reputation:0

Posted 05 November 2007 - 12:37 AM

Hey- great job on the tut--

It's been done before, but I like how you wrote it- cool ex pic too!

"pyrochild, you're my favorite person ever. We should go snowboarding some time."~ 007 Nab. Ish.
Posted Image
Click signature for stock source. Photograph by William Albert Allard. © National Geographic.
PDN Gallery | I Made a Deviant Art!


#11 DarkShock

DarkShock
  • Members
  • 4,202 posts
  • LocationCentral Florida
  • Reputation:1

Posted 05 November 2007 - 12:50 AM

Hey- great job on the tut--

It's been done before, but I like how you wrote it- cool ex pic too!

Oh so it has been done before. Thanks for your comment. :wink:

Gallery | Sig Tutorial | Animated Rain Tut | Sig Videos |PhotoBucket
2009 Signature of the Year Award winner


#12 QuwenQ

QuwenQ
  • Members
  • 22 posts
  • Reputation:0

Posted 05 November 2007 - 01:01 AM

It is a very neat tutorial, but it doesn't really seem to be "raining", just some random changing noise. =P
Sorry, but it is a neat effect! So, 7/10.
Posted Image

#13 TheVoid

TheVoid
  • Members
  • 811 posts
  • Reputation:0

Posted 05 November 2007 - 01:03 AM

Very nice, 8/10. :wink:

#14 QuwenQ

QuwenQ
  • Members
  • 22 posts
  • Reputation:0

Posted 05 November 2007 - 01:25 AM

I changed the method a little bit and used Paneling to make the rain move instead of just random noise:
Posted Image
Posted Image

#15 007 Nab

007 Nab
  • Members
  • 2,269 posts
  • LocationThe People's Republic of Socialist Romanistan
  • Reputation:0

Posted 05 November 2007 - 01:26 AM

Yeah Dark Shock-

http://paintdotnet.f...opic.php?t=1288
(I realize in the tut it isn't animated- I couldn't find the other one :? )

QuwenQ- I like your method too- [offtopic] and your avatar is awesome (PDN made?)

"pyrochild, you're my favorite person ever. We should go snowboarding some time."~ 007 Nab. Ish.
Posted Image
Click signature for stock source. Photograph by William Albert Allard. © National Geographic.
PDN Gallery | I Made a Deviant Art!


#16 DarkShock

DarkShock
  • Members
  • 4,202 posts
  • LocationCentral Florida
  • Reputation:1

Posted 05 November 2007 - 01:27 AM

To QuwenQ: that's pretty good. The rain doesn't look to intense.

Gallery | Sig Tutorial | Animated Rain Tut | Sig Videos |PhotoBucket
2009 Signature of the Year Award winner


#17 DarkShock

DarkShock
  • Members
  • 4,202 posts
  • LocationCentral Florida
  • Reputation:1

Posted 05 November 2007 - 01:27 AM

Yeah Dark Shock-

http://paintdotnet.f...opic.php?t=1288

Is that animated though?

Gallery | Sig Tutorial | Animated Rain Tut | Sig Videos |PhotoBucket
2009 Signature of the Year Award winner


#18 Quenlin

Quenlin
  • Members
  • 64 posts
  • Reputation:0

Posted 06 November 2007 - 10:57 AM

I'm one step closer to my planned masterpiece, Queen of Anarchy and Queens of Storm.

#19 Rainshadow

Rainshadow
  • Members
  • 766 posts
  • LocationMars
  • Reputation:0

Posted 06 November 2007 - 12:48 PM

I <3 this tutorial. Its totally AWESOME!
Posted Image
Do not click!
Time flies when you're eating a donut.
My dA

#20 Hellfire010

Hellfire010
  • Members
  • 737 posts
  • LocationNJ, USA
  • Reputation:0

Posted 06 November 2007 - 09:31 PM

Posted Image

I tried to make the water ripple a little with dents, but it didn't show up too well. :\
Still came out good, methinks.
Posted Image
